Best Monitor Setup for CAD Engineers and 3D Modelers: Size, Panel Types, and Key Features

For CAD engineers and 3D modelers who spend long hours in front of a computer, selecting the right monitor or monitor setup is important. The right monitor can enhance productivity, reduce eye strain, and ensure accurate color representation and detail, which are essential in design and modeling work. This guide will help you understand the factors to consider when selecting a monitor and the best monitor panel technologies available today.

Monitor Size: Finding the Optimal Screen

When selecting a monitor for CAD and 3D modeling, size matters. A larger monitor or multiple monitors can provide more screen real estate, allowing you to view complex designs in detail, manage multiple tools, and increase your efficiency.

Single Large Monitor (27″ to 32″)

• • • Advantages: A single large monitor (27 to 32 inches) offers a wide viewing area with fewer bezels to disrupt your workflow. It’s ideal for designers who prefer a seamless workspace.
    • Considerations: Look for monitors with high resolution (1440p or 4K) to ensure crisp details and text clarity. Lower resolutions on larger screens can result in pixelation and reduced detail.

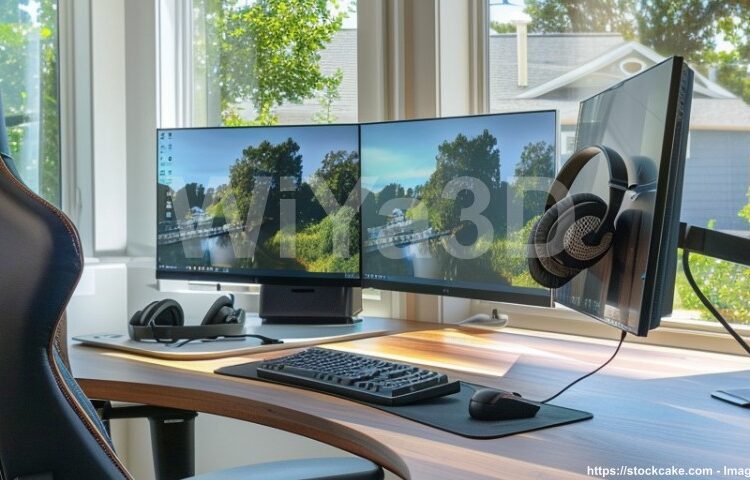

Dual or Multi-Monitor Setup (24″ to 27″)

• • • Advantages: Dual or multiple monitors (24 to 27 inches each) provide flexibility and allow you to multitask efficiently. You can dedicate one screen to your primary CAD software and use the other for reference materials, email, or communication tools.
    • Considerations: Ensure that all monitors in your setup are the same size and resolution to avoid visual inconsistencies. Adjustable stands are essential for aligning monitors perfectly.

Ultrawide Monitor (34″ and above)

• • • Advantages: Ultrawide monitors (34 inches and above) offer expansive horizontal screen space, ideal for panoramic views of large projects or multiple design windows side-by-side. They eliminate the need for multiple monitors and provide an immersive experience.
    • Considerations: Ultrawide monitors typically have aspect ratios of 21:9 or 32:9, which can be ideal for CAD software that benefits from a broader workspace. Make sure your graphics card can support the monitor’s resolution.

Monitor Resolution: Clarity and Detail

Resolution directly impacts the clarity and sharpness of images on the screen. For CAD and 3D modeling, where detail is paramount, higher resolutions are preferable.

1080p (Full HD):

• • Overview: Suitable for smaller monitors (up to 24 inches). However, it may not provide the clarity needed for detailed CAD work, especially on larger screens.
  • Best For: Entry-level setups or secondary monitors in a dual-display configuration.

1440p – 2K (Quad HD):

• • Overview: Offers a balance between affordability and clarity. Ideal for monitors in the 27-inch range, providing sharp text and detailed visuals without the high cost of 4K.
  • Best For: Mid-range setups, suitable for most CAD and 3D modeling tasks.

4K (Ultra HD):

• • Overview: Provides four times the resolution of 1080p, offering excellent clarity and detail. Best for monitors 27 inches and above, where every pixel counts for precise design work.
  • Best For: High-end CAD and 3D modeling setups where accuracy and detail are critical.

Monitor Panel Types: Understanding Display Technologies

Monitor panels significantly affect color accuracy, viewing angles, response times, and overall image quality. The three main types are TN (Twisted Nematic), IPS (In-Plane Switching), and VA (Vertical Alignment).

• TN Panels: Fast and Affordable

  • Overview: TN panels are known for their fast response times and lower costs. However, they have limited color accuracy and narrow viewing angles, which can cause color distortion when viewed from the side.
  • Best For: Not recommended for CAD or 3D modeling due to poor color reproduction and viewing angles.

• IPS Panels: Superior Color Accuracy and Wide Viewing Angles

  • Overview: IPS panels offer the best color accuracy and wide viewing angles, making them ideal for design and modeling tasks where color fidelity is critical. They provide consistent colors across the screen, even when viewed from different angles.
  • Best For: CAD and 3D modeling professionals who require accurate color representation and a high-quality visual experience.

• VA Panels: Good Contrast and Moderate Color Accuracy

  • Overview: VA panels provide better contrast ratios than IPS and TN panels, with deeper blacks and more vivid colors. However, they may not match the color accuracy of IPS panels and can have slower response times.
  • Best For: Suitable for CAD work where contrast is more important than color precision, but less ideal than IPS for 3D modeling.

Key Features to Look for in a Monitor for CAD and 3D Modeling

Color Accuracy and Gamut:

• • Look for monitors that cover a wide color gamut (sRGB or Adobe RGB) for accurate color reproduction. Monitors with factory calibration and color profiling tools are a plus.

Refresh Rate and Response Time:

• • A higher refresh rate (60Hz or above) provides smoother motion, which can be beneficial when rotating or zooming in on complex models. A low response time (5ms or lower) reduces ghosting and motion blur.

Ergonomics and Adjustability:

• • Choose a monitor with adjustable height, tilt, swivel, and pivot to ensure a comfortable working position. Ergonomically designed monitors reduce strain during long working hours.

Eye Care Technology:

• • Monitors with blue light filters, flicker-free technology, and anti-glare coatings can help reduce eye strain and fatigue, especially when working long hours.

Connectivity:

• • Ensure the monitor has sufficient connectivity options, such as HDMI, DisplayPort, USB-C, and multiple USB ports, to support various peripherals and multiple displays.

Recommendations for Monitor Setup Based on Workload and Preferences

• Single Monitor Setup:

  • 27-32″ 4K IPS Monitor: Ideal for most CAD engineers and 3D modelers, providing detailed visuals, excellent color accuracy, and enough screen real estate.
  • Example: Dell UltraSharp U2720Q, LG 32UN880-B.

• Dual Monitor Setup:

  • Two 27″ 1440p IPS Monitors: Perfect for multitasking, allowing simultaneous work on CAD software and other tasks like reference materials or communication.
  • Example: ASUS ProArt PA278QV, BenQ PD2700U.

• Ultrawide Monitor Setup:

  • 34″ Ultrawide 1440p or 5K IPS Monitor: Best for panoramic workspace views, ideal for users who prefer a single, continuous workspace.
  • Example: LG 34WN80C-B, Dell UltraSharp U4919DW.

Conclusion

Choosing the right monitor setup for CAD and 3D modeling is essential for maximizing productivity, ensuring comfort during long work sessions, and achieving the best possible visual quality. Consider your specific needs, such as screen size, resolution, panel type, and ergonomic features, to find the monitor that fits your workflow and enhances your design experience.
