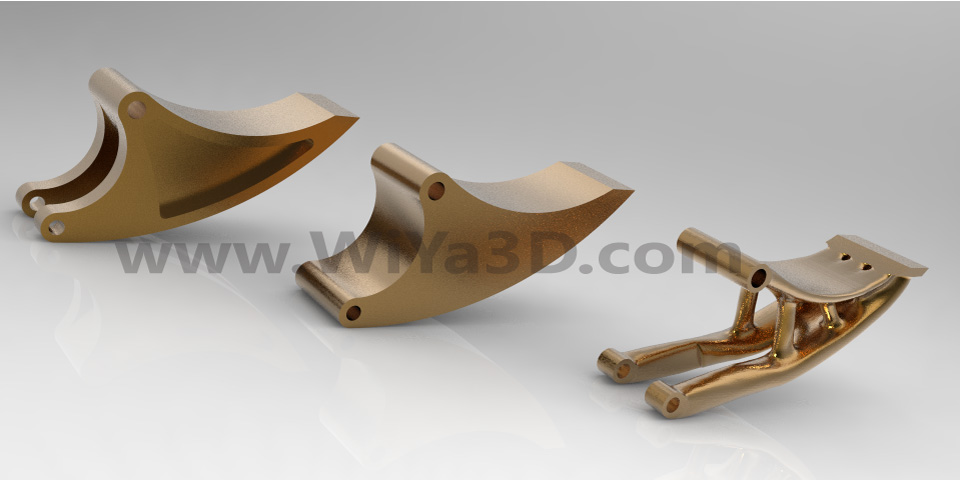

Topology Optimization with Generative Design in PTC Creo 7

PTC creo is one of leading generative design software that allow automatically create the topology optimize design for structural part/components.

Let’s jump in directly to how the topology optimize done along with Generative Design in PTC Creo. And in this tutorial, we are going to show you how the topology optimize design done in step by step in Creo 7.

3D Model the Part for Generative Design in Creo

Open the PTC Creo 7 and set the basic setting and start with New file.

PTC Creo Topology Optimization Generative Design 001

construct the sketch for part that need to optimize structure

PTC Creo Topology Optimization Generative Design 002

Extrude the sketch for initial bracket construction

PTC Creo Topology Optimization Generative Design 003

Develop the assembly pivot hole

PTC Creo Topology Optimization Generative Design 004

Now you have to develop individual features that will not affected during the topology optimization. Mean, make the extruded separate body features within the start geometry.

PTC Creo Topology Optimization Generative Design 005

PTC Creo Topology Optimization Generative Design 006

PTC Creo Topology Optimization Generative Design 007

Suppose you have to exclude the certain area being topology optimize. Then you have to model the volume in that region and assign the excluded volume being topology optimization in PTC Creo.

PTC Creo Topology Optimization Generative Design 008

PTC Creo Topology Optimization Generative Design 009

PTC Creo Topology Optimization Generative Design 010

PTC Creo Topology Optimization Generative Design 011

Generative Design In PTC Creo 7

Go to Application – Generative Design and activate the extension. you will see generative design tool bar will appear.

PTC Creo Topology Optimization Generative Design 012

Define Geometry – Select the Starting Geometry as the main body design.

PTC Creo Topology Optimization Generative Design 013

Select the Preserved Geometry, that should not affect during topology optimization.

PTC Creo Topology Optimization Generative Design 014

Select the Excluded Geometry, developed/model volume in order to omit for topology optimization.

PTC Creo Topology Optimization Generative Design 015

Define the Constrain – Let’s assume bracket will fixed or fit in two holes below marks.

PTC Creo Topology Optimization Generative Design 016

PTC Creo Topology Optimization Generative Design 017

Define the load condition for the bracket part. Here we apply force/pressure load to mark face.

PTC Creo Topology Optimization Generative Design 018

PTC Creo Topology Optimization Generative Design 019

  • Define the face, that apply for pressure/force
  • Define the force/pressure value
  • Define the magnitude value for safety factor
  • Define the unit

Define Material – Select the Design Criteria in order to define the material for the parts

PTC Creo Topology Optimization Generative Design 020

Click add material

PTC Creo Topology Optimization Generative Design 021

Select the target material or define new material with properties and open up window.

PTC Creo Topology Optimization Generative Design 022

Define the specific Design Constraints,

PTC Creo Topology Optimization Generative Design 023

And add the target volume limit that going to set for topology optimization.

Generative Design – Click the Optimize

PTC Creo Topology Optimization Generative Design 024

Depending on the computer GPU power the solution provide the resulted topology optimize model.

PTC Creo Topology Optimization Generative Design 025

Simulate the load distribution, by clicking the Display Simulation Result

PTC Creo Topology Optimization Generative Design 026

You can always redefine the all the parameter, loading, constrain, material and rebuild the optimize model to use as starting design for final manufacturing/verification.

Lets save the Topology Optimize model, To do click the Generate Design

PTC Creo Topology Optimization Generative Design 027

PTC Creo Topology Optimization Generative Design 028

Select current/new part option to save the model, depending on requirement.

PTC Creo Topology Optimization Generative Design 029

PTC Creo Topology Optimization Generative Design 030 1

Save the Model

PTC Creo Topology Optimization Generative Design 031

PTC Creo Topology Optimization Generative Design 032
