[Solved] Topology Optimization tab for Siemens NX

5 Posts
2 Users
1 Reactions
2,476 Views
Active Member
Joined: 4 years ago
Posts: 4
Topic starter

I cannot find Topology Optimization tab in my NX. I tried searching all application. Seems cannot find.

Please help me to find this option/tool



ReplyQuote
Yoda
 Yoda
Jedi Master Moderator Registered
Joined: 4 years ago
Posts: 30

Posted by: @marko

I cannot find Topology Optimization tab in my NX. I tried searching all application. Seems cannot find.

Please help me to find this option/tool

Topology Optimization is addon for the NX. Which version of NX software do you use?

Since the NX 12.0.2 it's included in the installation directory.

I suggest you to first check, is the "Topology Optimization" sub folder included inside the NX installation directory?

Grand Master Yoda



ReplyQuote
Active Member
Joined: 4 years ago
Posts: 4
Topic starter

@yoda

I have the NX12.0.2

and yes I check and found that "Topology Optimization" folder is there.

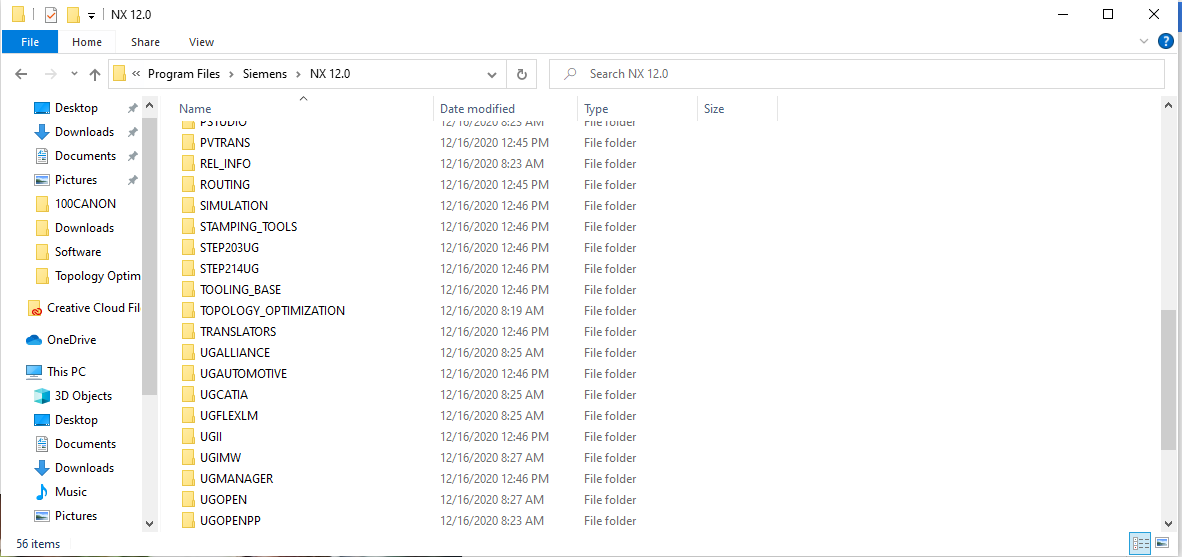

NX Instalation Directory

However it's not shown in anywhere inside once open the NX or application.



ReplyQuote
Yoda
 Yoda
Jedi Master Moderator Registered
Joined: 4 years ago
Posts: 30


Add the environment variable directing to the "Topology Optimization" Folder

UGII_USER_DIR  = Installation Directory full path to Topology Optimization folder

Environment Variable for NX Topology Optimization

Then re-open the NX - Right Click Top Boarder Bar - Select and Activate Topology Optimization

Grand Master Yoda



Marko Sulon reacted
ReplyQuote
Active Member
Joined: 4 years ago
Posts: 4
Topic starter

@yoda

Awesome, you saved my day...!

Thank you, that environment variable solved the issue



ReplyQuote
