Sketch Lines Cannot Snap to Objects in Fusion 360

2 Posts
2 Users
0 Reactions
1,050 Views
New Member
Joined: 2 years ago
Posts: 1
Topic starter

I have import the step file assembly to Fusion 360 and open. When I try to sketch on top of object face it doesn't recognize or cannot snap the line/curve to the loaded object edges/end points.

Is this due to import assembly model? and how can I reference the object edges/point for my sketch in Fusion 360



ReplyQuote
Great Ruler Moderator
Joined: 4 years ago
Posts: 59

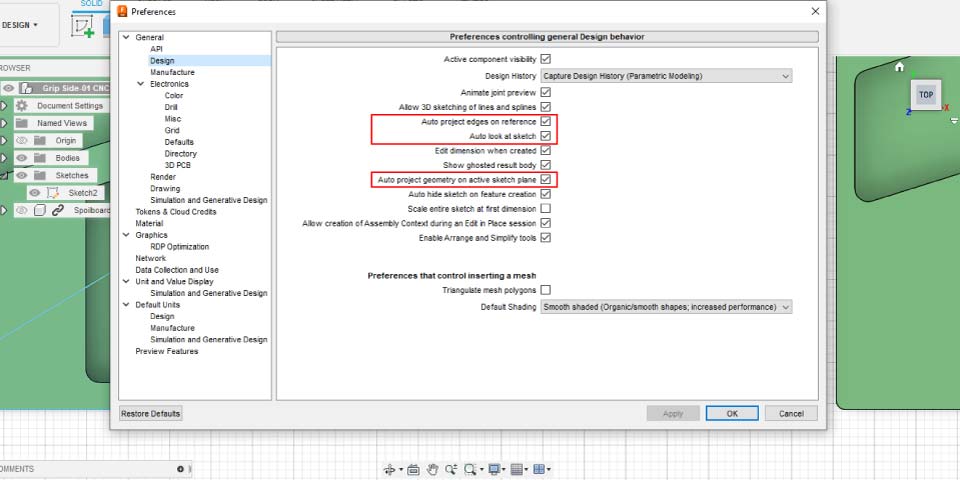

Go to profile Preferences -> Select Design

There you find following option to toggle tick ON

  • Auto project edges on reference.
  • Auto look at sketch.
  • Auto project geometry on active sketch plane

Cannot Snap Sketch Line to Object Edges
