Import IGES/DXF line become non- timestamp geometry in Siemens NX

3 Posts
2 Users
2 Reactions
2,187 Views
 Alex
Eminent Member
Joined: 4 years ago
Posts: 16
Topic starter

When I import the line/curve set to my model file with IGES/DXF format, it will not shown in the feature tree/history. That it's become non-time stamp geometry. How do I hide/show these line when I needed easily.

This topic was modified 3 years ago by Yoda


Broad reacted
ReplyQuote
Yoda
 Yoda
Jedi Master Moderator Registered
Joined: 4 years ago
Posts: 30


In Siemens NX unlike other CAD software you can import what ever generic CAD data ( Parasolid, IGES, STEP, DXF,..) to same model file. That individual data type not load/open as  separate file.

In regarding importing IGES/DXF file are listed in "Non- Timestamp Geometry" in "Part Navigator"

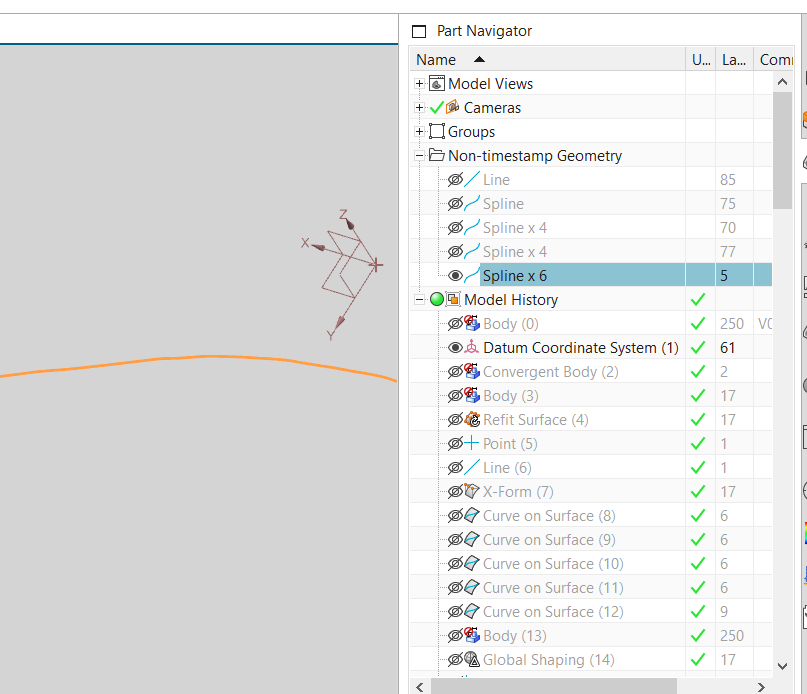

Non Timestamp Geometry

In order to show hide you have two option,

Option 01 - Click show/hide eye mark that related curves from "Non-Timestamp Geometry" listing

Option 02 - Assign the imported curves to Layer, from Layer setting you can show/hide by toggle on/off the particular layer

Grand Master Yoda



Alex reacted
ReplyQuote
 Alex
Eminent Member
Joined: 4 years ago
Posts: 16
Topic starter
Posted by: @yoda



Option 02 - Assign the imported curves to Layer, from Layer setting you can show/hide by toggle on/off the particular layer

Better option for me is adding to a Layer, which save times for me.

Thank you for your suggestions.
