In NX 1953 version , how do I add dimension relation?

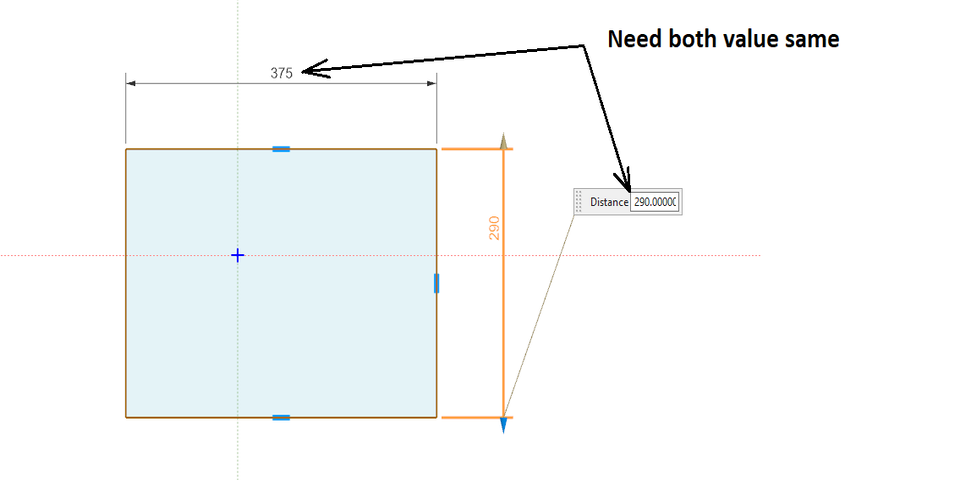

Simply I want to be same equal measurement/length for two dimension. But I cannot find can you help me.
Translate
▼
English
Spanish
French
German
Italian
Portuguese
Russian
Chinese
Japanese
Korean
Arabic
Hindi
Dutch
Polish
Turkish
Vietnamese
Thai
Swedish
Danish
Finnish
Norwegian
Czech
Hungarian
Romanian
Greek
Hebrew
Indonesian
Malay
Ukrainian
Bulgarian
Croatian
Slovak
Slovenian
Serbian
Lithuanian
Latvian
Estonian

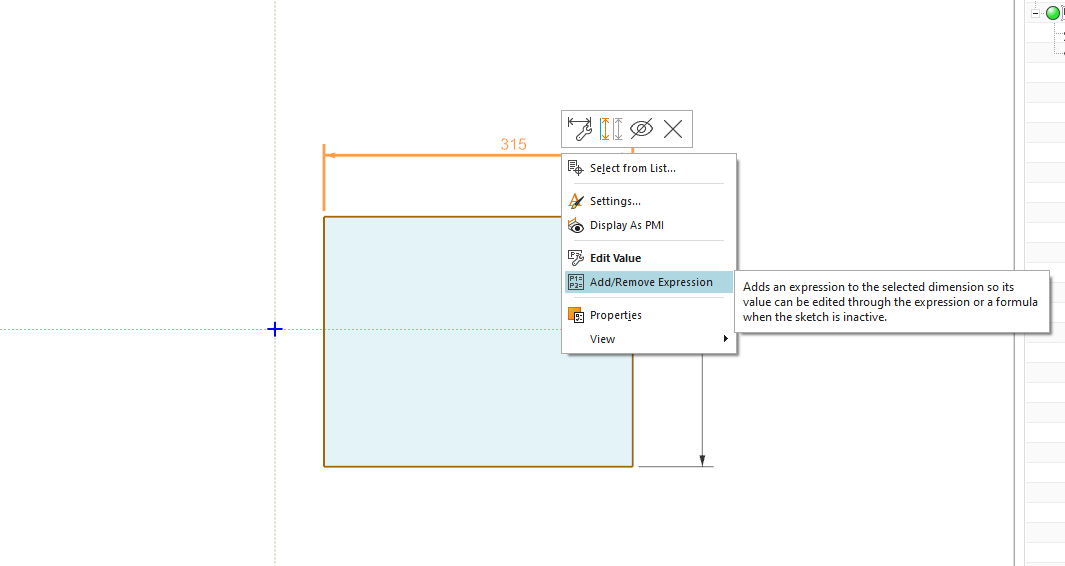

You can assign expression to each dimension line by right clicking and adding to them

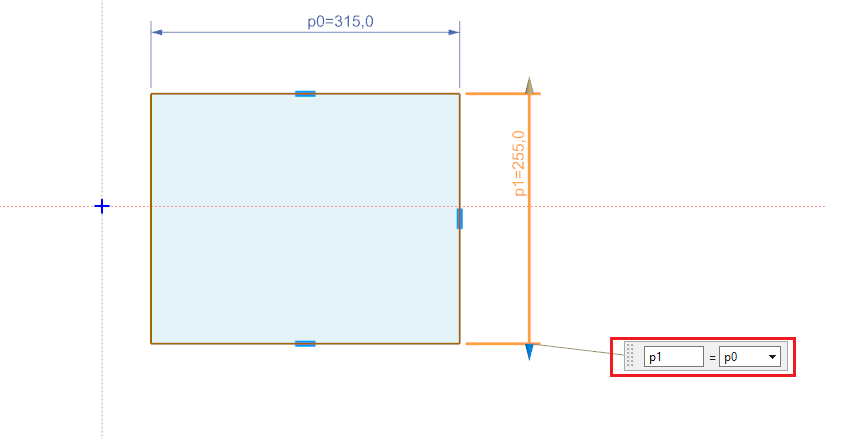

Then, assigning measurement notation and making them equal expression you have the target expression for the measurements.
