Re- Defining the Assembly Constraint in Siemens NX

2 Posts
2 Users
0 Reactions
1,716 Views
 Noah
Active Member
Joined: 4 years ago
Posts: 8
Topic starter

How do I re-define the assembly constraint for the assembly parts in NX?  Seems there is no option to define again the constraint. In SW it's always can delete existing mates and re-define the assembly parts.



ReplyQuote
Great Ruler Moderator
Joined: 4 years ago
Posts: 59


I does have re-define option,

Right click the assembly component in assembly navigator. Then select "Move"

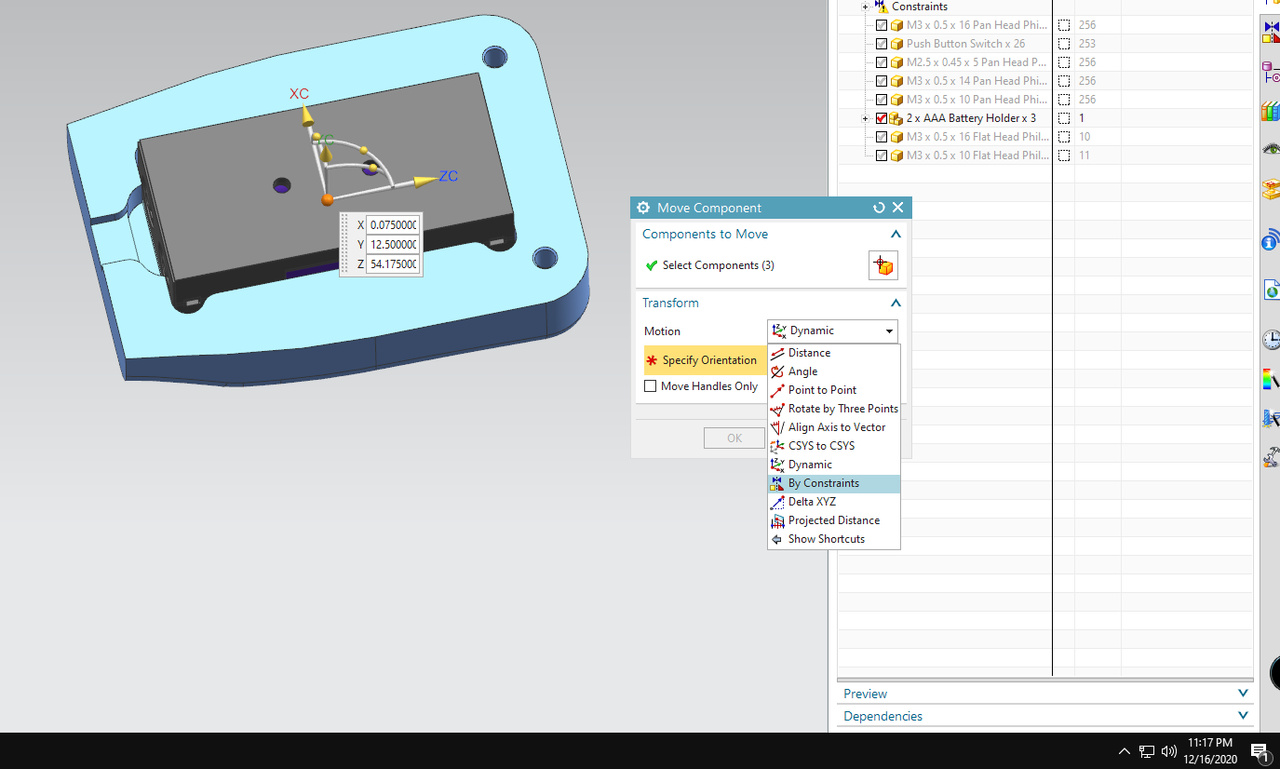

Move Component pop up and select the Transform - Motion as "By Constraints" from drop down menu.

Hope this resolve your concern.

Re Define Assembly Constrain 001

Re Define Assembly Constrain 002
