Best Method to Convert the 3D Model to STL

6 Posts
6 Users
0 Reactions
5,915 Views
Posts: 6
Topic starter
Active Member
Joined: 5 years ago
[#223]

What would be the best method to convert the 3D model into STL?

I know currently each CAD/3Dmodeling software provide export/import option to convert to STL. However I found some of converted stl are not up to the high quality. That require for 3D printing.


Reply
5 Replies
Posts: 52
Moderator
Great Ruler
Joined: 6 years ago

I always use Geomagic Design X if you have the solid CAD model and can convert into Parasolid, STEP, IGES..

Step 01 - Import the CAD Solid model into Geomagic Design X

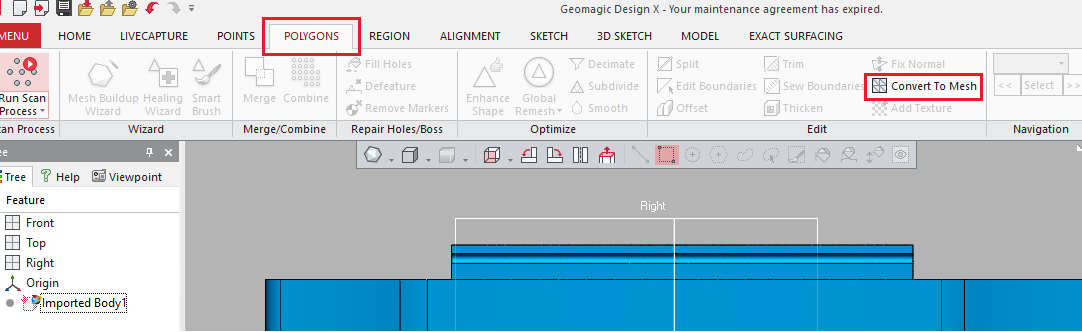

Step 02 - Go to "POLYGON" tool bar and then select "Convert To Mesh"

Polygon Tool Bar

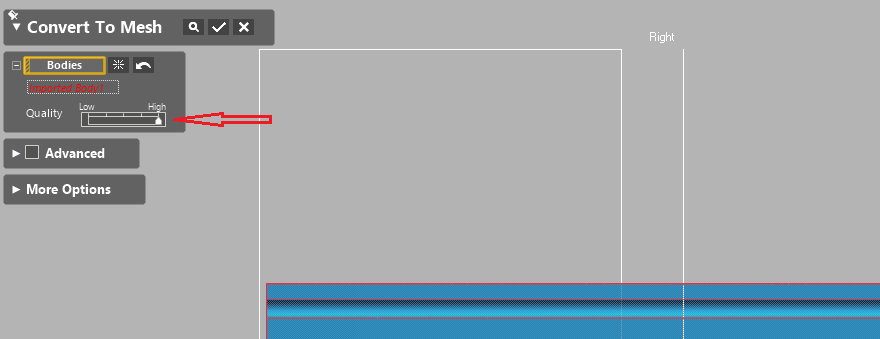

Step 03 - Control the quality you want for conversion of the MESH

Convert To Mesh

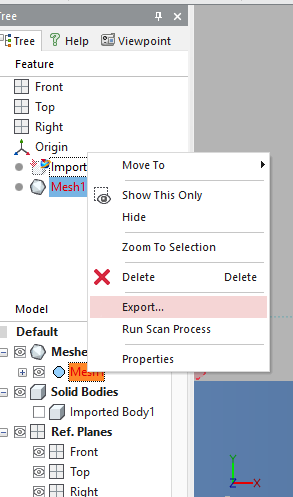

Step 04 - Finally you can export converted mesh to STL/OBJ,.

Export to STL


Reply
Posts: 20
Eminent Member
Joined: 5 years ago

In Fusion 360, right click on the body or component you want to export in the feature tree on right and select export to stl, then select a save location.


Reply
Posts: 18
Active Member
Joined: 5 years ago

Open the rar archive file in something like blender or tinkercad.

Export as stl.

Open stl in your slicer.


Reply
Posts: 22
Eminent Member
Joined: 5 years ago

Import the .stp (STEP) file into a CAD package such as Fusion 360, and then export the model as an STL file.


Reply
Posts: 25
Eminent Member
Joined: 5 years ago
Reply
